Pachetul garchf înfășoară mașina extinsă de modelare GARCH
rugarch
în spatele unui
forecastinterfață de stil, astfel încât previziunile bazate pe GARCH să poată fi produse, reprezentate și evaluate cu aceleași convenții utilizate pe tot parcursul forecast
ecosistem (în spiritul funcțiilor precum forecast::thetaf()). Funcția cal de bătaie, xgarchf()potrivește un model GARCH la o serie de timp univariată – cu o alegere a modelului de varianță (sGARCH, eGARCH,
gjrGARCH, apARCH, iGARCH…), ordinul ARMA pentru media condiționată, ordinul GARCH și distribuția condiționată – și returnează un standard
forecast obiect care conține prognoze de puncte, intervale de predicție și trasee simulate. Deoarece ieșirea se integrează cu forecastmetodele lui S3, plot() și alte generice funcționează din cutie, iar căile simulate (sims) simplifică calculul unor metrici de prognoză probabilistică mai bogate (CRPS, pierderi de pinball, scoruri Winkler etc.) prin validare încrucișată. Mai jos, ilustrăm xgarchf() pe randamentul zilnic al prețului de închidere a acțiunilor Google și apoi desfășurați un mic exercițiu de validare încrucișată comparând câteva variante GARCH folosind
crossvalidation
pachet.
library(garchf) Registered S3 method overwritten by 'quantmod': method from as.zoo.data.frame zoo

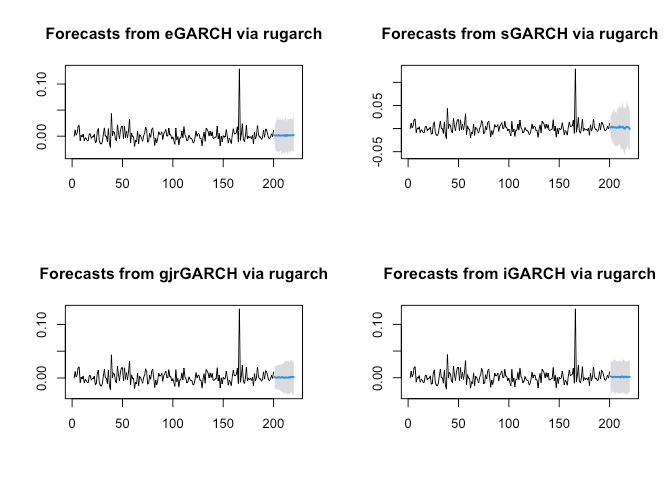

y <- diff(log(fpp2::goog200))
fit1 <- xgarchf(y, h = 20, model = "eGARCH")
fit2 <- xgarchf(y, h = 20, model = "sGARCH")
fit3 <- xgarchf(y, h = 20, model = "gjrGARCH")
fit4 <- xgarchf(y, h = 20, model = "iGARCH")
print(summary(fitted(fit1)))
Min. 1st Qu. Median Mean 3rd Qu. Max.
0.001504 0.001504 0.001504 0.001504 0.001504 0.001504
Min. 1st Qu. Median Mean 3rd Qu. Max.
0.002783 0.002783 0.002783 0.002783 0.002783 0.002783
Min. 1st Qu. Median Mean 3rd Qu. Max.
0.001233 0.001233 0.001233 0.001233 0.001233 0.001233
Min. 1st Qu. Median Mean 3rd Qu. Max.
0.001485 0.001485 0.001485 0.001485 0.001485 0.001485

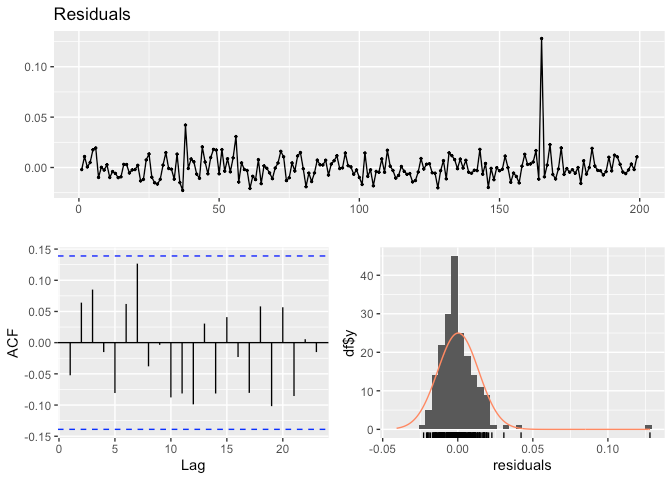

Ljung-Box test data: Residuals Q* = 10.341, df = 10, p-value = 0.4111 Model df: 0. Total lags used: 10
Ljung-Box test data: Residuals Q* = 10.341, df = 10, p-value = 0.4111 Model df: 0. Total lags used: 10
Ljung-Box test data: Residuals Q* = 10.341, df = 10, p-value = 0.4111 Model df: 0. Total lags used: 10
Ljung-Box test data: Residuals Q* = 10.341, df = 10, p-value = 0.4111 Model df: 0. Total lags used: 10
Pentru crossvalidationconsultați https://github.com/Techtonique/crossvalidation.
spl_m5 <- function(predicted,
observed,
probs = c(0.005, 0.025, 0.165, 0.25,
0.5,
0.75, 0.835, 0.975, 0.995))
{
if (is.null(predicted$sims)) {
stop("predicted$sims is required")
}
# training series from forecast object
train <- as.numeric(predicted$x)
# M5 scaling denominator
scale_denom <- mean(abs(diff(train)), na.rm = TRUE)
if (scale_denom <= 0 || !is.finite(scale_denom)) {
scale_denom <- 1
}
sims <- predicted$sims
# quantile forecasts: rows = horizons, cols = probs
qhat <- sapply(
probs,
function(p) apply(sims, 1, stats::quantile, probs = p, na.rm = TRUE)
)
observed <- as.numeric(observed)
# pinball loss
pinball_vec <- numeric(length(probs))
for (j in seq_along(probs)) {
u <- probs(j)
q <- qhat(, j)
pinball_vec(j) <- mean(
ifelse(
observed >= q,
u * (observed - q),
(1 - u) * (q - observed)
),
na.rm = TRUE
)
}
# scaled pinball loss for each quantile
spl_vec <- pinball_vec / scale_denom
# average scaled pinball loss
mean_spl <- mean(spl_vec)
out <- c(
mean_SPL = mean_spl
)
names(spl_vec) <- paste0("SPL_", probs)
c(out, spl_vec)
}
eval_metric95 <- function(predicted, observed)
{
error <- observed - predicted$mean
rmse <- sqrt(mean(error^2))
mae <- mean(abs(error))
# Only one interval returned
lower <- predicted$lower
upper <- predicted$upper
coverage <- mean(
observed >= lower & observed <= upper
)
alpha <- 0.05
winkler <- ifelse(
observed < lower,
(upper - lower) + (2 / alpha) * (lower - observed),
ifelse(
observed > upper,
(upper - lower) + (2 / alpha) * (observed - upper),
(upper - lower)
)
)
spl <- spl_m5(predicted, observed)
c(
RMSE = rmse,
MAE = mae,
Coverage95 = coverage,
Winkler95 = mean(winkler),
CRPS = mean(scoringRules::crps_sample(observed, predicted$sims)),
mean_SPL = as.numeric(spl("mean_SPL"))
)
}
eval_metric80 <- function(predicted, observed)
{
error <- observed - predicted$mean
me <- mean(error)
rmse <- sqrt(mean(error^2))
mae <- mean(abs(error))
# Only one interval returned
lower <- predicted$lower
upper <- predicted$upper
coverage <- mean(
observed >= lower & observed <= upper
)
alpha <- 0.2
winkler <- ifelse(
observed < lower,
(upper - lower) + (2 / alpha) * (lower - observed),
ifelse(
observed > upper,
(upper - lower) + (2 / alpha) * (observed - upper),
(upper - lower)
)
)
spl <- spl_m5(predicted, observed)
c(
ME = me,
RMSE = rmse,
MAE = mae,
Coverage80 = coverage,
Winkler80 = mean(winkler),
CRPS = mean(scoringRules::crps_sample(observed, predicted$sims)),
mean_SPL = as.numeric(spl("mean_SPL"))
)
}
res <- crossvalidation::crossval_ts(
y = y,
initial_window = 150,
horizon = 10,
fixed_window = FALSE,
fcast_func = garchf::xgarchf,
eval_metric = eval_metric95,
fit_params = list(arma_order=c(0, 0),
garch_order = c(1, 1),
model = "eGARCH",
level=95),
show_progress = FALSE
)
print(summary(res))
res <- crossvalidation::crossval_ts(
y = y,
initial_window = 150,
horizon = 10,
fixed_window = FALSE,
fcast_func = garchf::xgarchf,
eval_metric = eval_metric95,
fit_params = list(arma_order=c(0, 0),
garch_order = c(1, 1),
model = "sGARCH",
level=95),
show_progress = FALSE
)
print(summary(res))
res <- crossvalidation::crossval_ts(
y = y,
initial_window = 150,
horizon = 10,
fixed_window = FALSE,
fcast_func = garchf::xgarchf,
eval_metric = eval_metric95,
fit_params = list(arma_order=c(0, 0),
garch_order = c(1, 1),
model = "iGARCH",
level=95),
show_progress = FALSE
)
print(summary(res))
RMSE MAE Coverage95 Winkler95
Min. :0.006459 Min. :0.004896 Min. :0.7000 Min. :0.03441
1st Qu.:0.008001 1st Qu.:0.006266 1st Qu.:0.9000 1st Qu.:0.06153
Median :0.009135 Median :0.007061 Median :1.0000 Median :0.06466
Mean :0.017189 Mean :0.010613 Mean :0.9475 Mean :0.20090
3rd Qu.:0.022415 3rd Qu.:0.015066 3rd Qu.:1.0000 3rd Qu.:0.47706
Max. :0.042741 Max. :0.023054 Max. :1.0000 Max. :0.96625
CRPS mean_SPL
Min. :0.004154 Min. :0.1170
1st Qu.:0.004922 1st Qu.:0.1362
Median :0.005311 Median :0.1481
Mean :0.010039 Mean :0.3380
3rd Qu.:0.017800 3rd Qu.:0.6763
Max. :0.051416 Max. :1.6607
RMSE MAE Coverage95 Winkler95
Min. :0.006554 Min. :0.005380 Min. :0.7000 Min. :0.03856
1st Qu.:0.008424 1st Qu.:0.006561 1st Qu.:0.9750 1st Qu.:0.06261
Median :0.009314 Median :0.007401 Median :1.0000 Median :0.07277
Mean :0.017155 Mean :0.010741 Mean :0.9525 Mean :0.17716
3rd Qu.:0.020081 3rd Qu.:0.013012 3rd Qu.:1.0000 3rd Qu.:0.34988
Max. :0.042568 Max. :0.022999 Max. :1.0000 Max. :0.49756
CRPS mean_SPL
Min. :0.004634 Min. :0.1349
1st Qu.:0.005383 1st Qu.:0.1516
Median :0.005695 Median :0.1606
Mean :0.008842 Mean :0.2986
3rd Qu.:0.012903 3rd Qu.:0.4725
Max. :0.019442 Max. :0.7436
RMSE MAE Coverage95 Winkler95
Min. :0.006556 Min. :0.005514 Min. :0.7000 Min. :0.03580
1st Qu.:0.008306 1st Qu.:0.006239 1st Qu.:0.9750 1st Qu.:0.06307
Median :0.009119 Median :0.007007 Median :1.0000 Median :0.06478
Mean :0.017029 Mean :0.010484 Mean :0.9525 Mean :0.16725
3rd Qu.:0.018881 3rd Qu.:0.011711 3rd Qu.:1.0000 3rd Qu.:0.16760
Max. :0.042713 Max. :0.023064 Max. :1.0000 Max. :0.51546
CRPS mean_SPL
Min. :0.004851 Min. :0.1363
1st Qu.:0.005317 1st Qu.:0.1510
Median :0.005700 Median :0.1591
Mean :0.008720 Mean :0.2928
3rd Qu.:0.009316 3rd Qu.:0.3126
Max. :0.019649 Max. :0.7586
